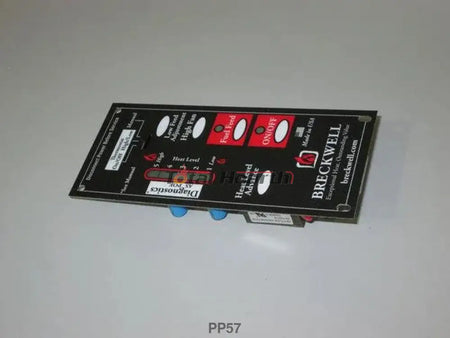

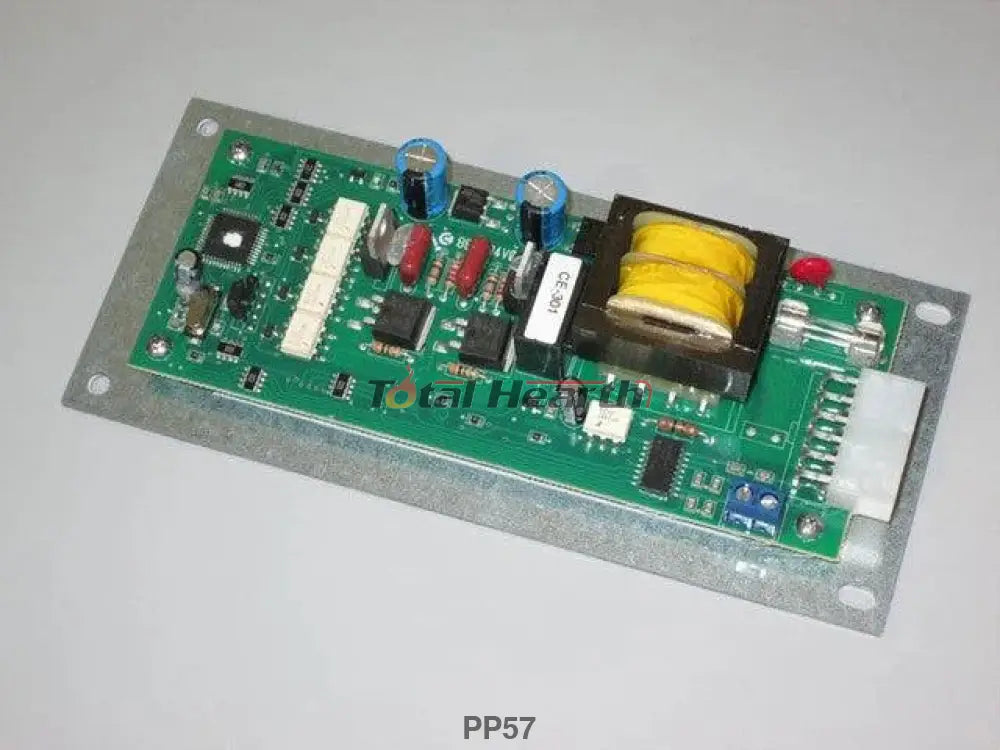

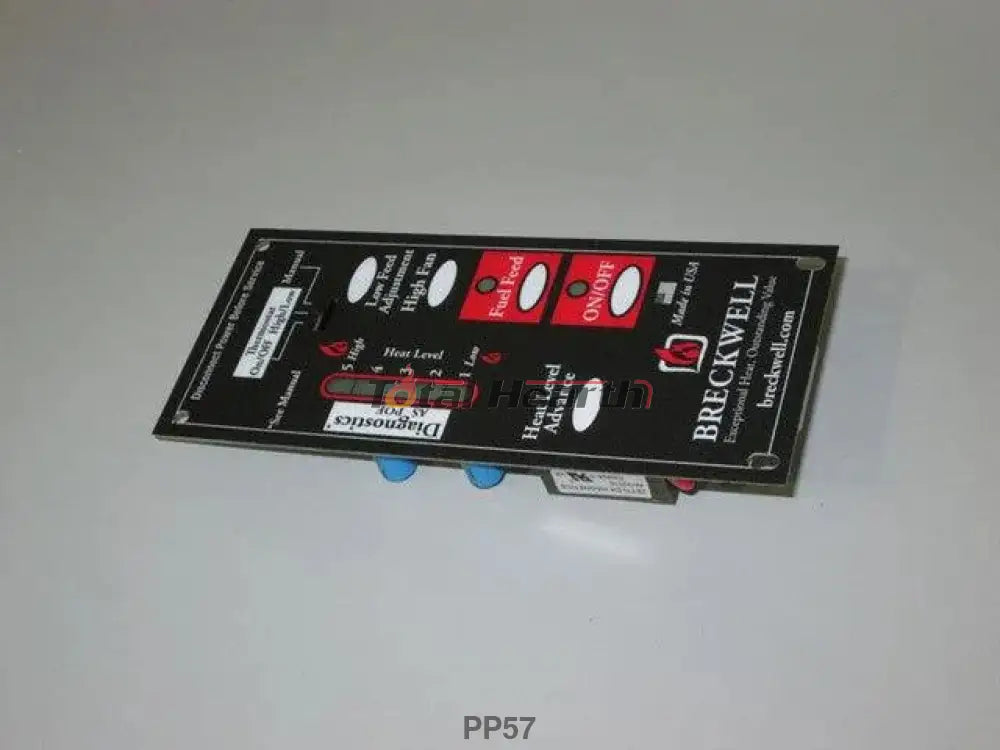

Breckwell Digital 4RPM Circuit Board (A-E-301)

Only 2 left
SKU: A-E-301 / PP-57
Regular price $429.99

Replacement digital 4 RPM circuit board / control panel for Breckwell pellet stoves. For units made before 2002. Fits the following models:

Note: to best determine compatibility, please double check the spacing on your auger shaft. The auger shaft coils will be spaced 1" apart to indicate set up for 4RPMs, whereas 2" spacing indicates set up for 1RPMs.

Fits the following Breckwell pellet stove models IF you currently have a digital circuit panel installed:

  • P23 Sonora - up to serial # 7165 (Some older models may have a A-E-101)
  • P23I Sonora Insert - up to serial # 2242 (Some older models may have a A-E-101)
  • P24 - up to serial # 53663
  • P24I - up to serial # 53794
  • P2000 Tahoe - up to serial # 11779
  • P2000I Tahoe Insert - up to serial # 22207
  • P2700 Mojave - up to serial # 8444
  • P20 Cadet (If you have upgraded to a digital board)
  • P26 Cadet (If you have upgraded to a digital board)
  • P32i Cadet (If you have upgraded to a digital board)


Please note that serial numbers are approximate and should not be the only source of validation for the part. Serial numbers may be off by as much as 10 units either way.

If your serial number is higher than those listed above, then you will need the C-E-401 Digital Control Panel.

If you currently have an analog board, then you need a A-E-950KIT Control Panel Upgrade Kit.

Breckwell part # C-E-301 or A-E-301
OEM USSC part

May fit other models, please check your owner’s manual for part number compatibility.
