High Limit Thermodisc Switch (80683 / C-E-090-21) – 300°F Safety Cutoff with Auto Reset

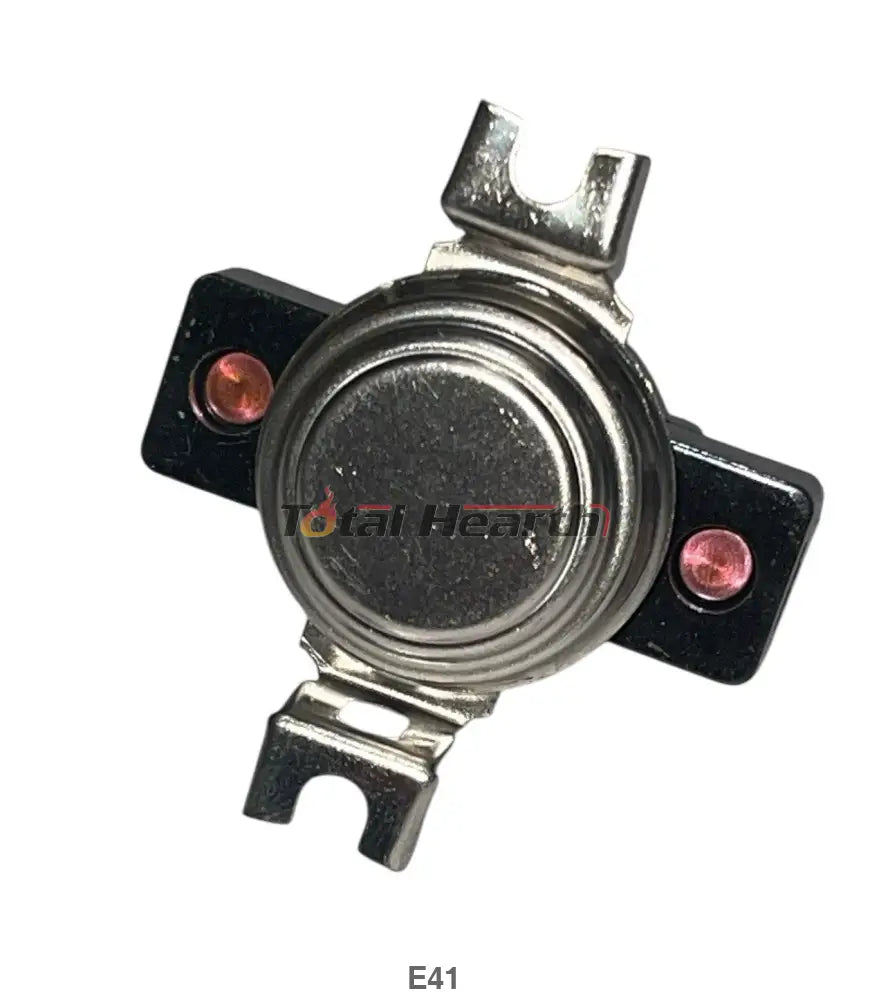

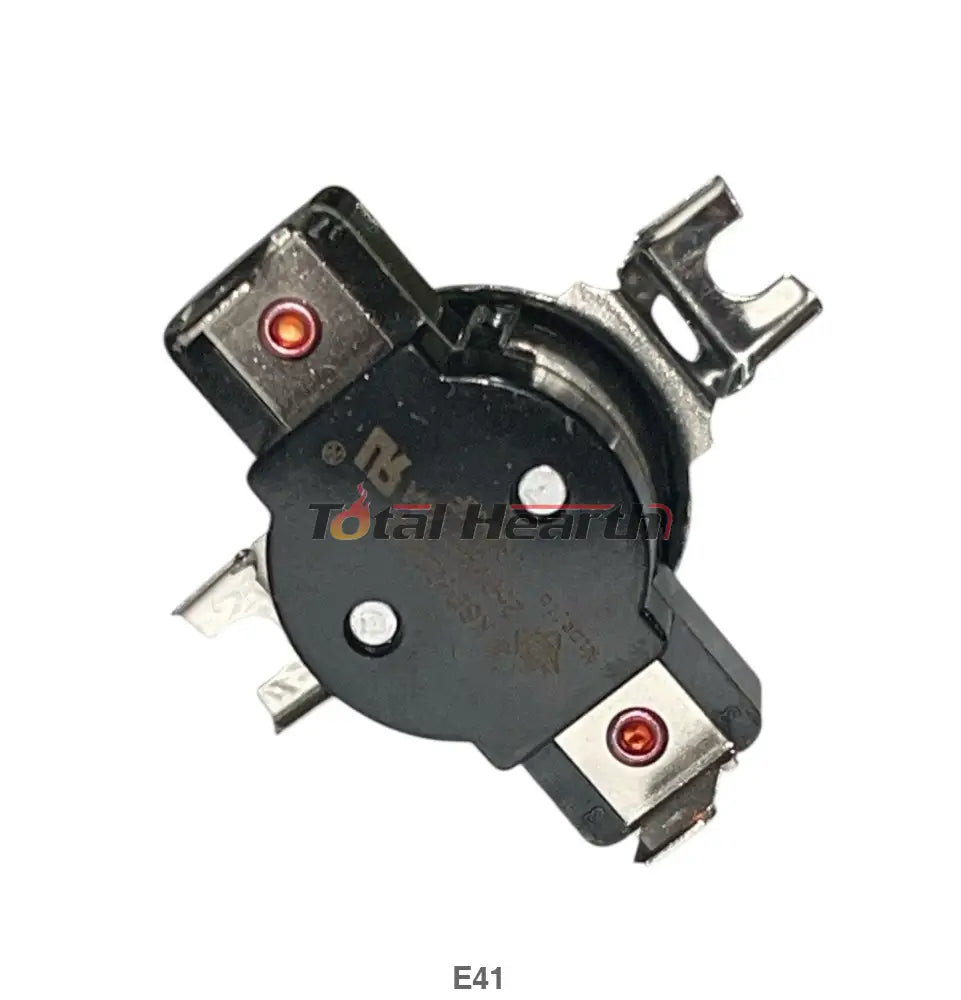

Protect your pellet stove from dangerous overheating conditions with this High Limit Thermodisc (80683). Designed for safety and reliability, this snap disc heat sensor opens the circuit at 300°F, cutting power to the feed system and preventing unsafe operation. It automatically resets once temperatures fall 50°F below the trip point, making it a critical component in many Ashley, Breckwell, and US Stove Company pellet stoves.
⚠️ Note: This is an OEM-grade 300°F / 50°F differential snap disc. Some aftermarket versions only rate at 250°F with a 30°F reset—make sure you're getting the part your stove was designed for.
Key Features:
✅ High Limit Protection – Cuts power at 300°F to prevent overheating
✅ Automatic Reset – Resets at 250°F to resume normal operation
✅ Normally Closed Contact – Maintains circuit continuity until overheating occurs
✅ OEM-Grade Quality – Matches original equipment specifications for reliability
✅ Easy Installation – Includes standard male spade terminals
Specifications:
📌 Part Numbers: 80683, C-E-090-21
📌 Function: High limit safety switch
📌 Open Temperature: 300°F
📌 Reset Temperature: 250°F (50°F differential)
📌 Contact Type: Normally closed
📌 Terminals: Male spade connectors
📌 Reset Type: Automatic
📌 OEM Status: Genuine US Stove / Breckwell replacement part
Compatible Models:
Ashley Pellet Stoves:
• APC4000
Breckwell Pellet Stoves:
• P1000 Big E
• P20, P22, P23, P24
• P2000, P2700, P26, P28
• P32, Classic Cast
• SP6000 (Pre-2013)
US Stove Pellet Stoves:
• 5040 Pellet Heater
Ensure safe operation and prevent feed system damage with this critical high-limit switch. Whether you're replacing a failed unit or upgrading for peace of mind, this OEM part is the right choice. Order now and keep your pellet stove protected and operating safely!
