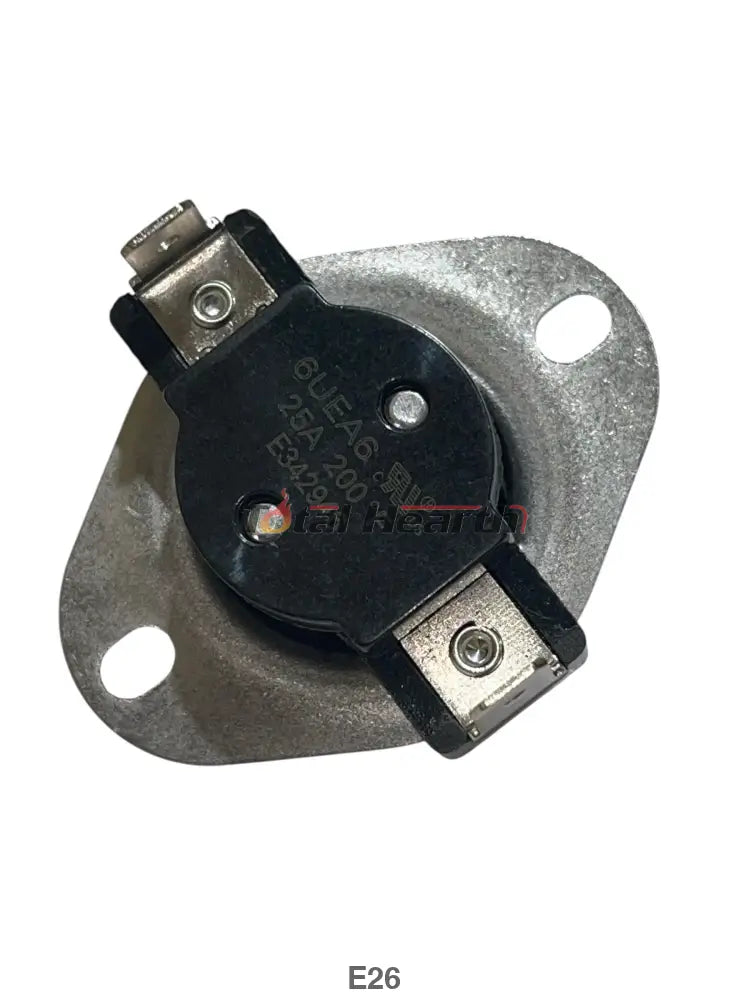

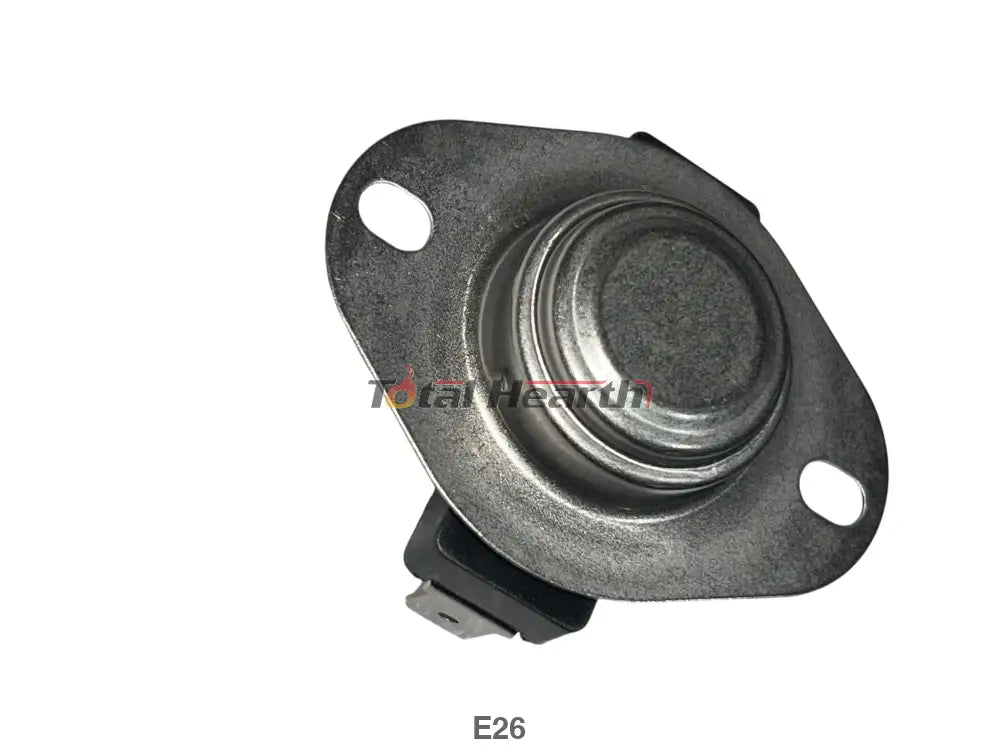

Thermodisc Limit Switch – 200°F Open, 160°F Close, Auto Reset (TDL200-40F / 60T11-610016)

In stock
SKU: E26
Regular price $22.99

Thermodisc Limit Switch – 200°F Open, 160°F Close, Auto Reset (TDL200-40F / 60T11-610016)

Ensure safe and efficient stove operation with the Thermodisc TDL200-40F Limit Control Switch, engineered for precision temperature management. This SPST snap-action switch opens at 200°F and closes at 160°F, with a 40°F differential and automatic reset functionality. It provides reliable protection for wood stoves, pellet stoves, HVAC systems, and other heating equipment by interrupting power when unsafe temperatures are reached.

Key Features:
Open on Rise – SPST – Automatically opens the circuit at 200°F and resets at 160°F
Auto Reset Function – Resumes operation once temperatures drop below threshold
Reliable Overheat Protection – Prevents damage by shutting down blower or system at critical temps
Welded Construction – Ensures integrity of current-carrying components
Surface Mount Design – Easy to install with standard mounting holes

Specifications:
📌 Part Numbers: TDL200-40F, 60T11-610016, D814, 200FB-40F, t-o-D60T11
📌 Contact Type: SPST (Single Pole Single Throw)
📌 Switch Action: Open on rise
📌 Opening Temperature: 200°F
📌 Closing Temperature: 160°F
📌 Differential: 40°F
📌 Reset Type: Automatic
📌 Voltage: 120V AC / 240V AC / 277V AC
📌 Current Ratings:
  • Resistive: 25A @ 120V, 240V, 277V
  • Inductive: 10A @ 120V, 5A @ 240V
📌 Terminal Type: 1/4" Spade Connectors
📌 Mounting: Surface mount
📌 Mounting Hole Diameter: 1/8"
📌 Hole Center Distance: 1-5/8"
📌 Mounting Base: 2" L x 1-5/8" W
📌 Overall Dimensions: 2-3/4" W x 1" H x 1-1/2" D
📌 Compliance: cULus Recognized
📌 Country of Origin: China

This thermostatic limit control is ideal for applications requiring precise overheat protection. Commonly used in wood stoves, pellet stoves, and heating units, it helps safeguard your system from unsafe temperature spikes. Order now for dependable thermal protection and peace of mind!
